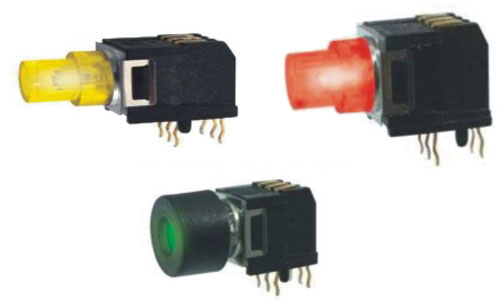

• Pole-Position：1P2T,Right Angle Push on-on momentary
Type,with or w/o LED are Available
• Rating：Power Min./Max.:0.02VA/1.0VA
Current Min./Max.:0.1mA~100mA
Voltage Min./Max.:DC 20mV~DC 32V
• Contact Resistance：250mΩmax，1.5VDC;100mA,
by Method of Voltage DROP
• Insulation Resistance：100MΩ min.500VDC
• Dielectric Strength：Breakdown is not Allowable;
250 VAC for 1 Minute
• Operating Force：400±125gf
• Operating Life：50,000 cycles
• Operating Temperature Range：-20℃ ~70℃
• Total Travel：0.20mm MAX
|
 |
   |
| Part Number | Rating | Contact Resistance | Insulation Resistance | Dielectric Strength | Operating Force | Operating Life | Operating Temperature Range | Total Travel | PDF下載 |
|---|---|---|---|---|---|---|---|---|---|
| R2995A-NWY | Power Min./Max.:0.02VA/1.0VA Current Min./Max.:0.1mA~100mA Voltage Min./Max.:DC 20mV~DC 32V | 250mΩmax，1.5VDC;100mA,by Method of Voltage DROP | 100MΩ min.500VDC | Breakdown is not Allowable;250 VAC for 1 Minute | 400±125gf | 50,000 cycles | -20℃ ~70℃ | 0.20mm MAX | 暫無 |
| R2995A-NWR | Power Min./Max.:0.02VA/1.0VA Current Min./Max.:0.1mA~100mA Voltage Min./Max.:DC 20mV~DC 32V | 250mΩmax，1.5VDC;100mA,by Method of Voltage DROP | 100MΩ min.500VDC | Breakdown is not Allowable;250 VAC for 1 Minute | 400±125gf | 50,000 cycles | -20℃ ~70℃ | 0.20mm MAX | 暫無 |
| R2995A-NWG-CAP-K | Power Min./Max.:0.02VA/1.0VA Current Min./Max.:0.1mA~100mA Voltage Min./Max.:DC 20mV~DC 32V | 250mΩmax，1.5VDC;100mA,by Method of Voltage DROP | 100MΩ min.500VDC | Breakdown is not Allowable;250 VAC for 1 Minute | 400±125gf | 50,000 cycles | -20℃ ~70℃ | 0.20mm MAX | 暫無 |
